Quartz Evo Led Bollard

Quartz Evo LED Bollard AL9100 - AL9200 SERIES

IP66
CE cert icon-01
UKCA cert icon

This bollard combines the trusted design of the LED Quartz with the latest advancements in optical and Glass-fibre Reinforced Polyester (GRP) technologies. Our GRP range provides a non-conductive and passively safe alternative to steel, making it perfect for rail schemes.

The Quartz Evo bollard is also available in a steel/alloy version, offering durability and the option to retrofit alloy head units onto existing steel bases. The Quartz Evo offers significant performance gains, with a 50% reduction in power consumption compared to the original product.

It also offers market-leading bollard spacings, surpassing any other product available. The Quartz Evo sets a new standard for modern bollard lighting.

 – Railway Platforms – Railway Stations – Railway Crossings – Car Parks – Retail Parks Public Realm –

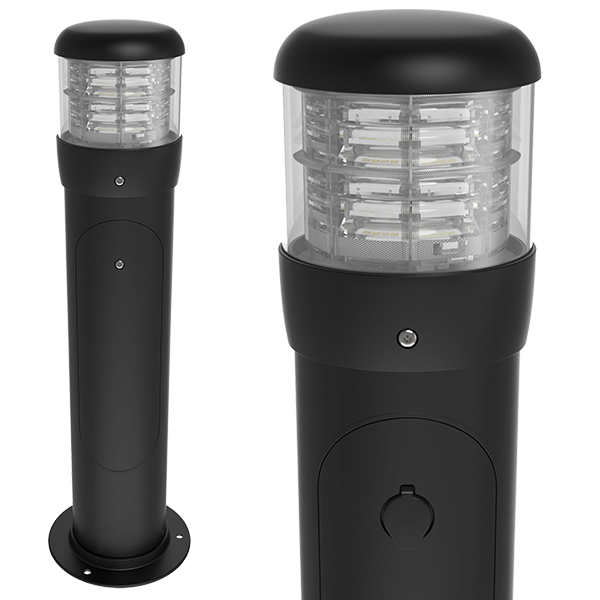

Black Quartz Evo Close up and normal

Industry Leading Spacing Between Bollards – Less units to meet lighting safety standards – Unrivalled Light Uniformity – Robust Alloy/Steel Version – Vandal-resistant Bollard – Quarter-turn locking mechanism

KEY FEATURES

– Low glare optic design
– Non-conductive GRP Version
– 360 Degree Symmetrical Option & 180 Degree Asymmetrical option
– Flange plate or root mounted

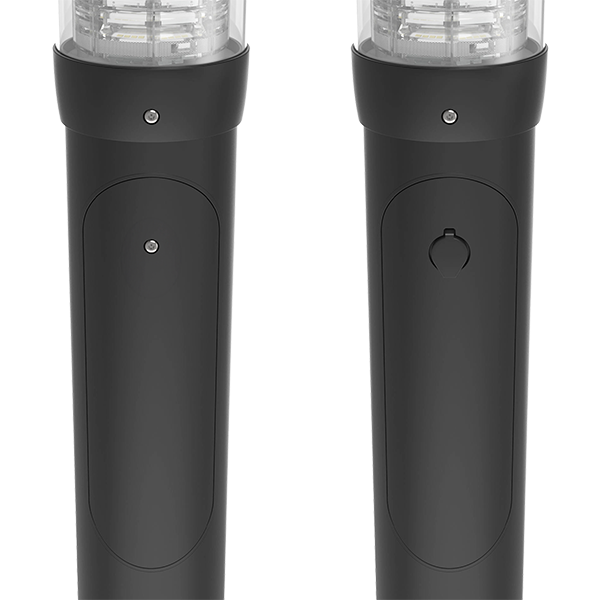

– Flush, extra-wide access door
– Retrofit head units – Alloy/steel version only
– IP66 Rated
– 3-hour emergency battery backup option

DOWNLOADS

DATASHEET
Bollard GRP - Root Mount Dimensions (Double Hole)
Bollard Steel Alloy Version Dimensions
Bollard GRP - Root Mount Dimensions (Single Hole)
Bollard GRP with Flange Dimensions

SMART CONTROLS & CONNECTIVITY

• 5° Adjustable tilt • 1-10V Digital dimming interface • DALI digital dimming interface • NEMA SOCKET: 7 Pins
• ZHAGA Luminaire certified • Automatic dimming through virtual midnight system • Astronomical clock • CLO
Functionality • 0% Upward Light Output Ratio  •


KEY FEATURES

– Eight optic options
– Anti-aging rubber gaskets
– Tempered safety glass
– Stainless steel fastenings
– Tempered glass protection
– Programmable driver with a lifespan of over 100,000 hours
– Integrated thermal protection,
– Overload safeguards

Eros Plaza 2

DOWNLOADS

DATASHEET
PHOTOMETRY FILES
DIMENSIONS
LIGHT DISTRIBUTION
